SOLDERING ROBOTS
9433 vision
Call for pricing

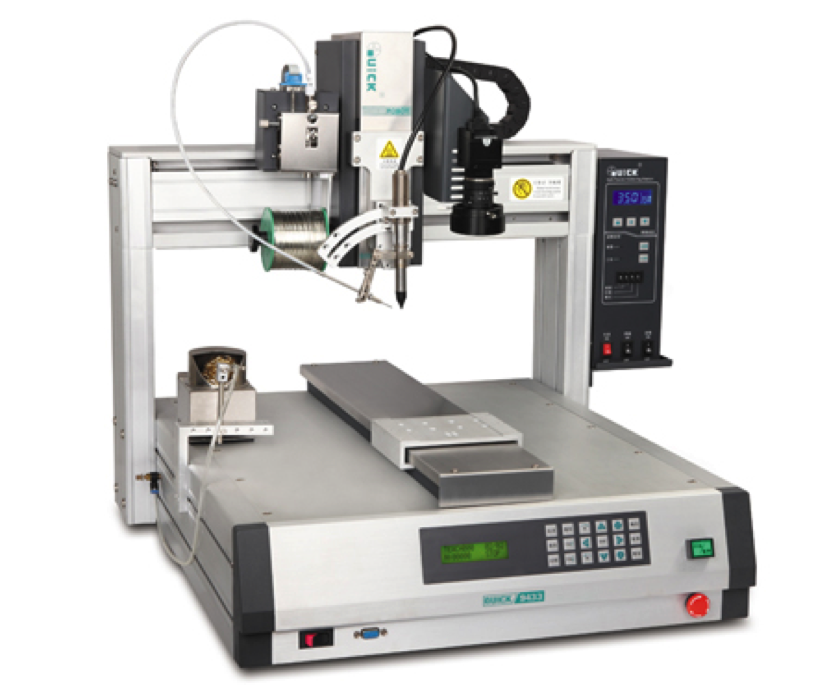

The QUICK 9433 Vision series of Soldering Robots feature a robust Hot Iron system with a superior closed loop temperature sensor capable of delivering and maintaining a tip temperature with industry leading stability and accuracy. Two fine-toothed gears work to pull Solder from the Solder Spool while also perforating the surface of the Solder Wire to allow for better out gassing of the Flux Core.
The vision feature allows for process forgiveness by allowing the machine to make small tip location adjustments on the fly. This can be helpful when working with materials that may not always be placed in the exact same position on the board every time the robot fixture is loaded.
system specifications:
VOLTAGE: 100~240V AC
HEATING POWER: 150W
TEMPERATURE RANGE: 50°C~500°C (as per working modes)
AXIS: 3
WORK TABLE MAX LOAD: 18lbs
HEAD MAX LOAD: 4lbs
ON BOARD FILE STORAGE: 255 Programs Max
COMMAND PER PROGRAM STORAGE CAPACITY: 60000 Commands Max
SOLDER WIRE DIAMETER: 0.3, 0.5, 0.6, 0.8, 1.0, 1.2, 1.6 (mm)
DIMENSIONS WxDxH: 670x670x580mm
WEIGHT: 108lbs
MOVING RANGE:
X-AXIS: 400mm
Y-AXIS: 400mm
Z-AXIS: 100mm
MOVING SPEED:
X-AXIS: 0.1~600mm/sec
Y-AXIS: 0.1~600mm/sec
Z-AXIS: 0.1~300mm/sec
REPEAT ACCURACY:
X-AXIS: ±0.02mm
Y-AXIS: ±0.02mm
Z-AXIS: ±0.02mm
ENVIRONMENTAL CONDITIONS:
TEMPERATURE: 0-40°C
HUMIDITY: 20%-90% (no condensing)
