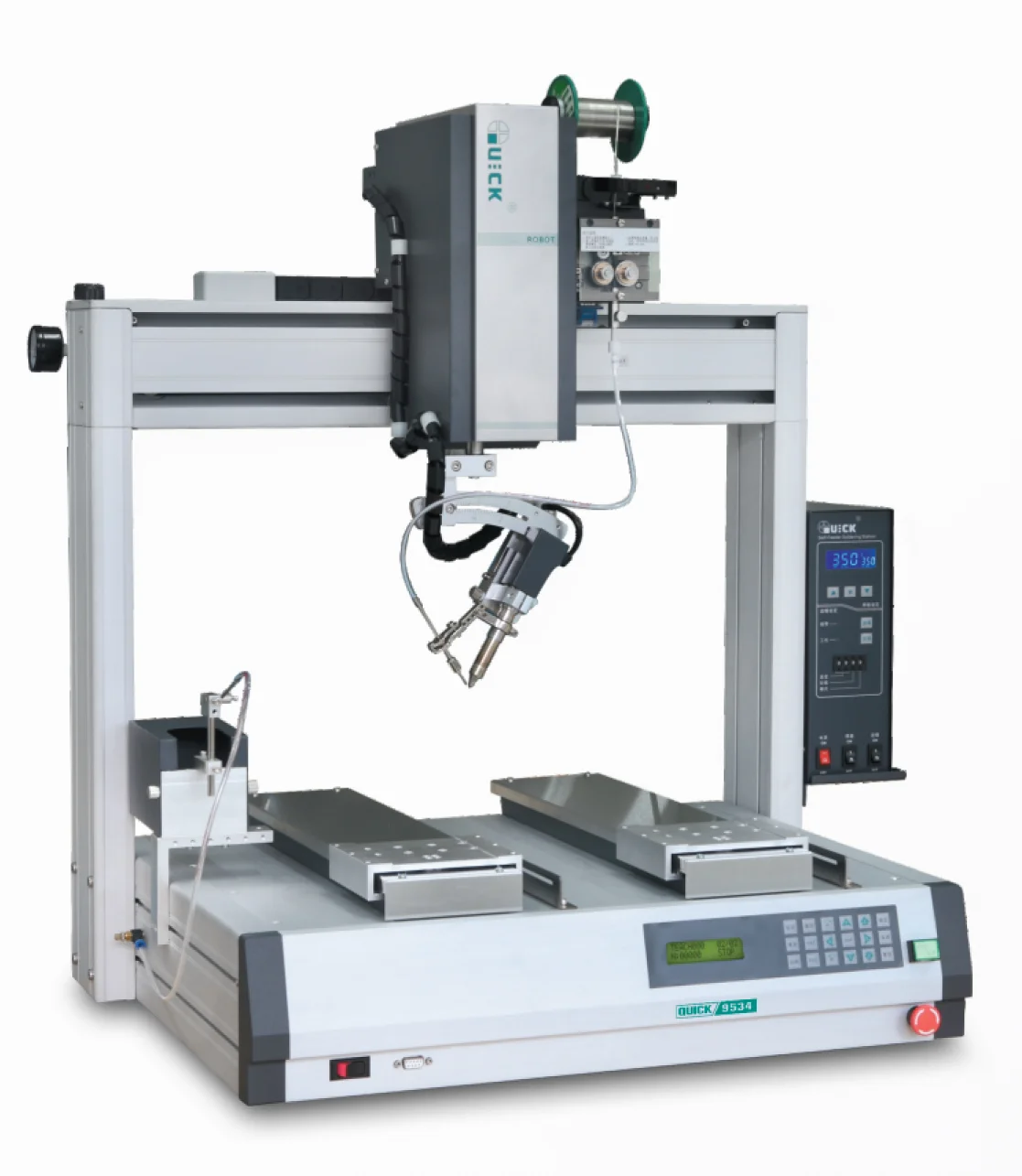

Quick 9534y Table-Top Soldering Robot
Call for pricing

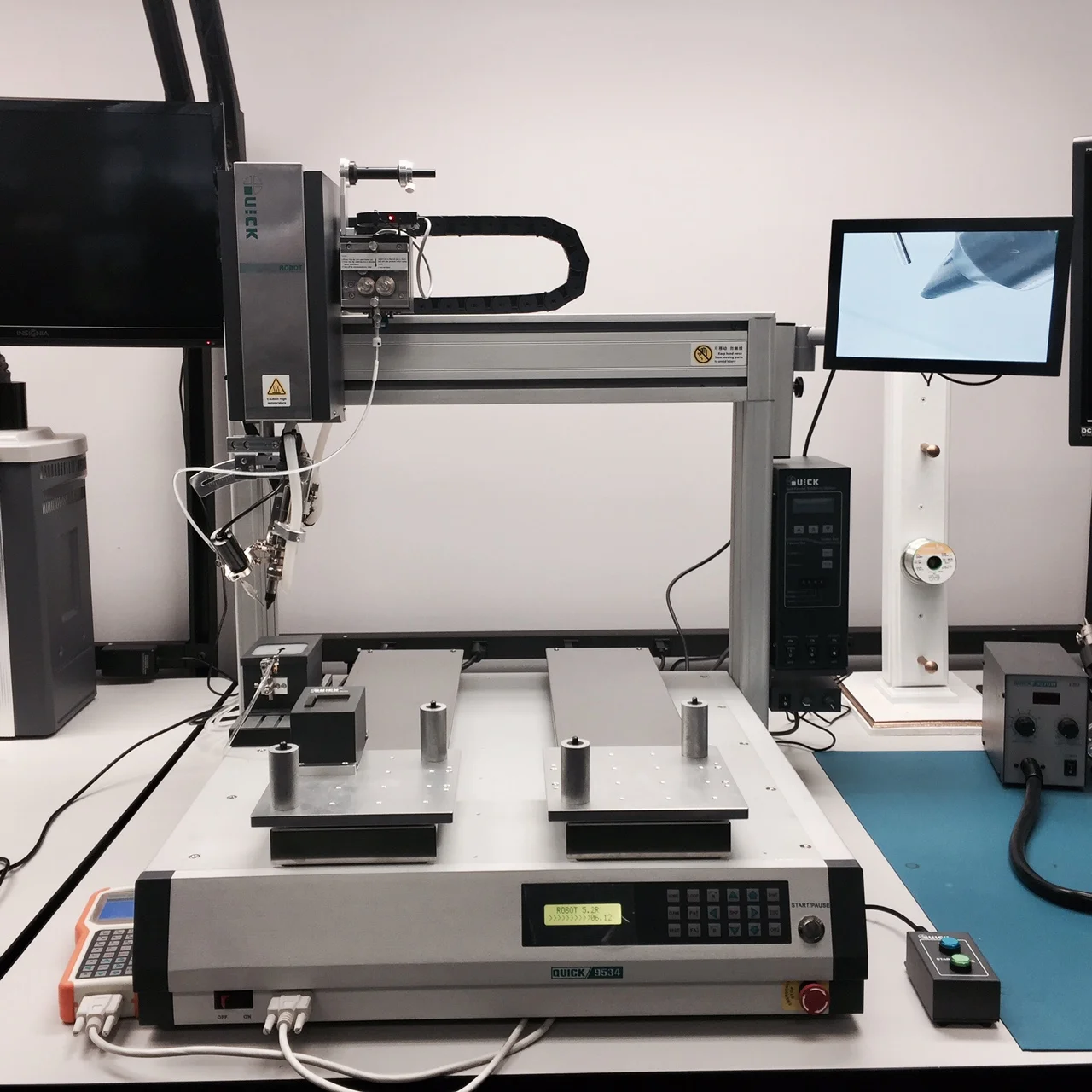

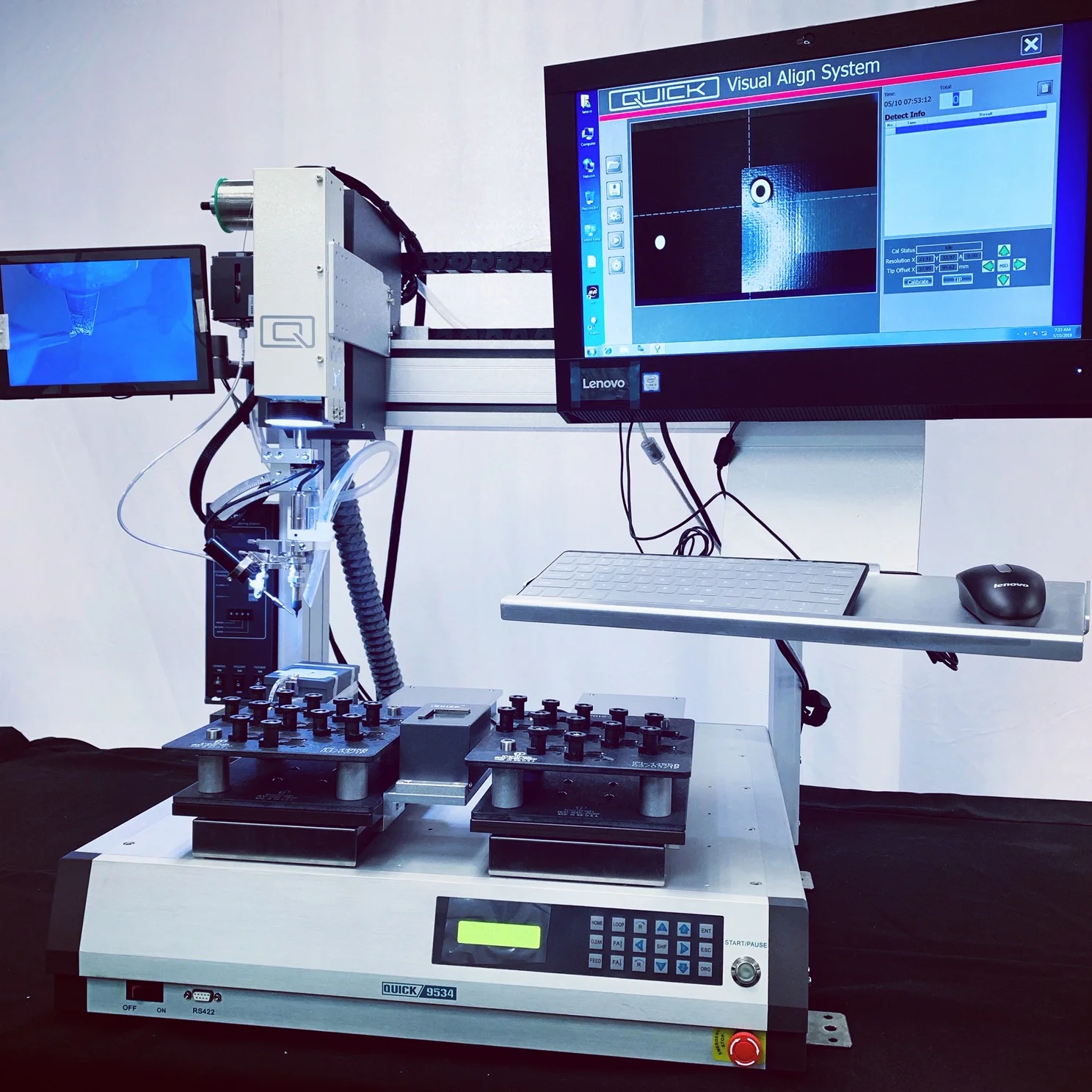

The QUICK 9534Y Table-Top Soldering Robot features a robust Hot Iron system with a superior closed loop temperature sensor capable of delivering and maintaining a tip temperature with industry leading stability and accuracy. Complete with a 150W Power Supply, a V-Scoring Solder Feeder, 4-Axis Motion, Adjustable End Effector, a Tip Cleaning Station, and Dual Sliding Y-Axis Tables this system is more than capable of handling most any Soldering Application. This system is ideal in fast paced production settings. One Y-Axis Table can be unloaded and subsequently loaded while the other table is under the gantry being worked on. This system has a 500mm x 500mm movement range.
System Specifications:
VOLTAGE: 100~240V AC
HEATING POWER: 150W
TEMPERATURE RANGE: 50°C~500°C (as per working modes)
AXIS: 4
ON BOARD FILE STORAGE: 255 Programs Max
COMMAND PER PROGRAM CAPACITY: 60000 Commands Max
SOLDER WIRE DIAMETER: 0.3, 0.5, 0.6, 0.8, 1.0, 1.2, 1.6(mm)
DIMENSIONS WxDxH: 680x680x780mm
WEIGHT: 117lbs
MOVING RANGE:
X-AXIS 500mm
Y-AXIS 500mm
Z-AXIS 100mm
R-AXIS 300°
MOVING SPEED:
X-AXIS 0.1~600mm/sec
Y-AXIS 0.1~600mm/sec
Z-AXIS 0.1~200mm/sec
R-AXIS 0.1~600°/sec
REPEAT ACCURACY:
X-AXIS ±0.02mm
Y-AXIS ±0.02mm
Z-AXIS ±0.02mm
R-AXIS ±0.02°
STEPPER RESOLUTION:
X-AXIS 0.01mm
Y-AXIS 0.01mm
Z-AXIS 0.01mm
R-AXIS 0.01°
ENVIRONMENTAL CONDITIONS:
TEMPERATURE: 0-40°C
HUMIDITY: 20-90%
