8434 Dispensing Robot

Call for pricing

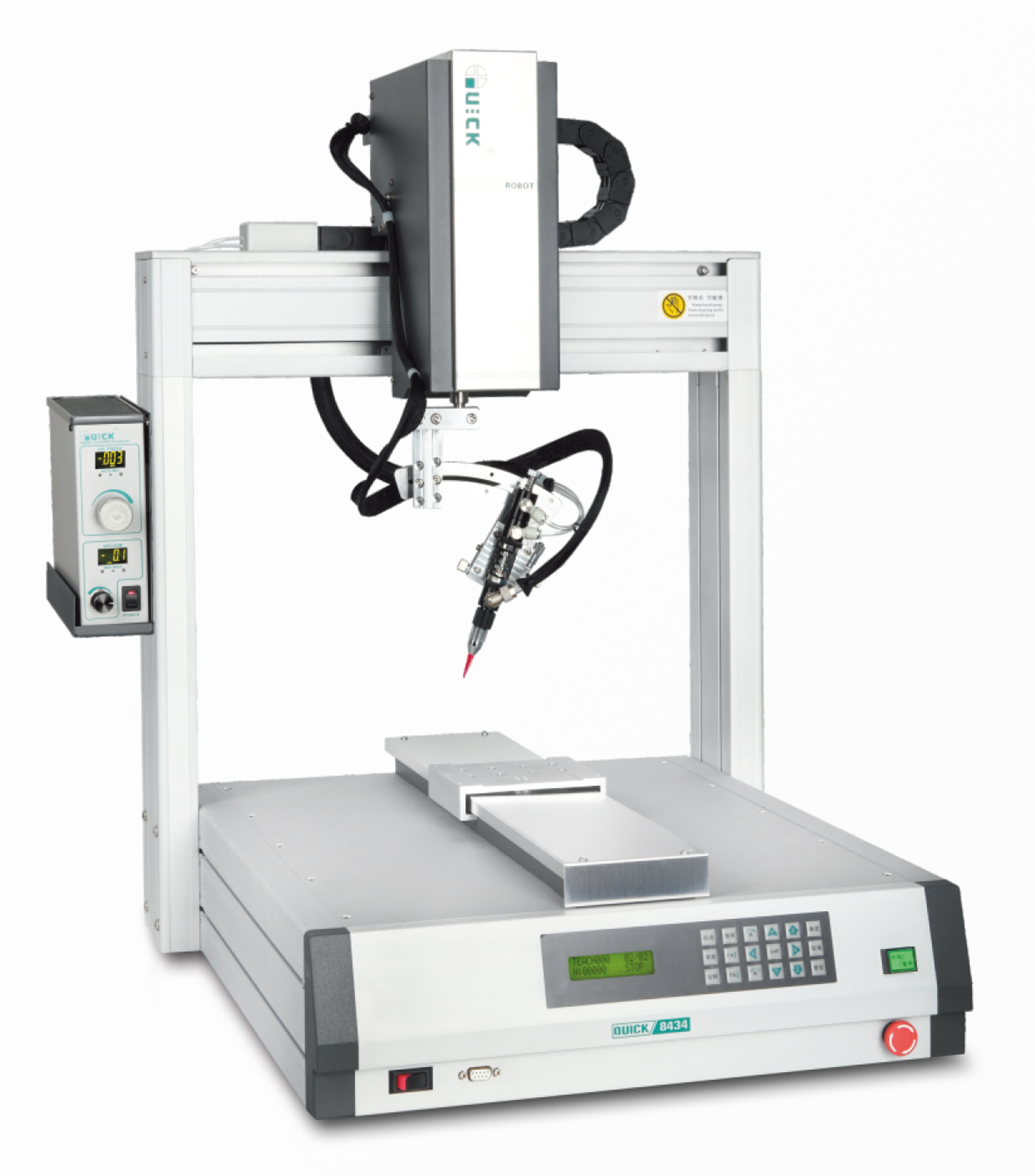

The QUICK 8434 Series Dispensing Robot features a robust 4-Axis  Motion Platform with Rotation for Progressive batch style processing.

This system is designed to Automate the controlled dispensing process. Once programmed to a specific application, this robot can quickly and accurately dispense materials to their desired locations.

Various types of Dispensing Needles, Syringes, Dispensing Valves, and Dispensing Controllers are available.

System specifications:

Gantry / Motion Control Platform:
Table-Top (Dual Slide)

Working Area (X,Y,Z):
400mm x 400mm x 100mm @ 320°R

Program Storage Capacity:
256 Dispensing Programs

Teaching Method:
Point & Teach - Teaching Pendant

Program Storage Method:
Embedded Chip



Features:

Robust Table-Top Style Gantry (320° Rotation)

Wide variety of valves / nozzles available.

High Performance Dispensing Solution with Rotation

Additional I/O :  11 Inputs / 11 Outputs

Greatly increases dispensing accuracy and consistency.
