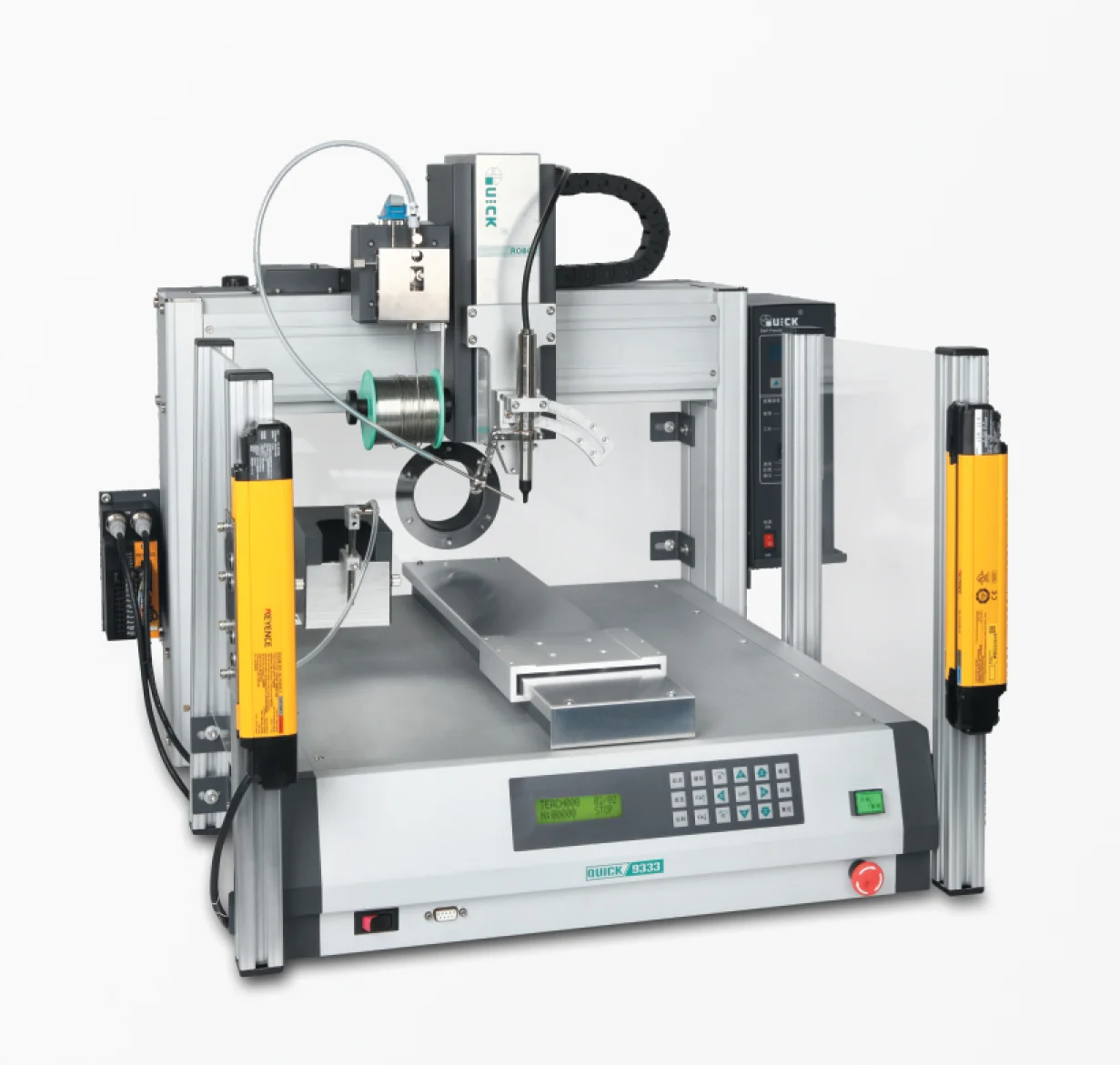

Quick 9333 with light curtain Soldering Robot

Call for pricing

The QUICK 9333 With Light Curtain Table-Top Soldering Robot features a robust Hot Iron system with a superior closed loop temperature sensor capable of delivering and maintaining a tip temperature with industry leading stability and accuracy. Complete with Light Screen, 150W Power Supply, Tip Cleaning Station, and generous 300mm x 300mm Moving Range this system is rich with features in a consolidated design. Great for any Table-Top Soldering Process.





SYSTEM SPECIFICATIONS:

VOLTAGE:                                                                                    100-240V AC

HEATING POWER:                                                                         150W

TEMPERATURE RANGE:                                           50°C-500°C (as per working modes)

AXIS:                                                                                                   3

MOVING RANGE:

X                                                                                                     300mm

                                                                                                   300mm

Z                                                                                                    100mm

MOVING SPEED:

                                                                                                0.1~600mm/s

y                                                                                                 0.1~600mm/s

                                                                                                0.1~300mm/s

REPEAT ACCURACY:

X

Y                                                                                                    ±0.02mm

Z

DEMO FILE NUMBER:                                                  ≤999, max 60,000 points

PROCESS FILE NUMBER:                                                            ≤255

SOLDER WIRE DIAMETER:                                    0.3, 0.5, 0.6, 0.8, 1.0, 1.2, 1.6 (mm)

DIMENSIONS:                                                                        470x470x580mm

WEIGHT:                                                                                           84lbs
