Quick EC513YA
Automatic Screw Driving Robot
Call for pricing

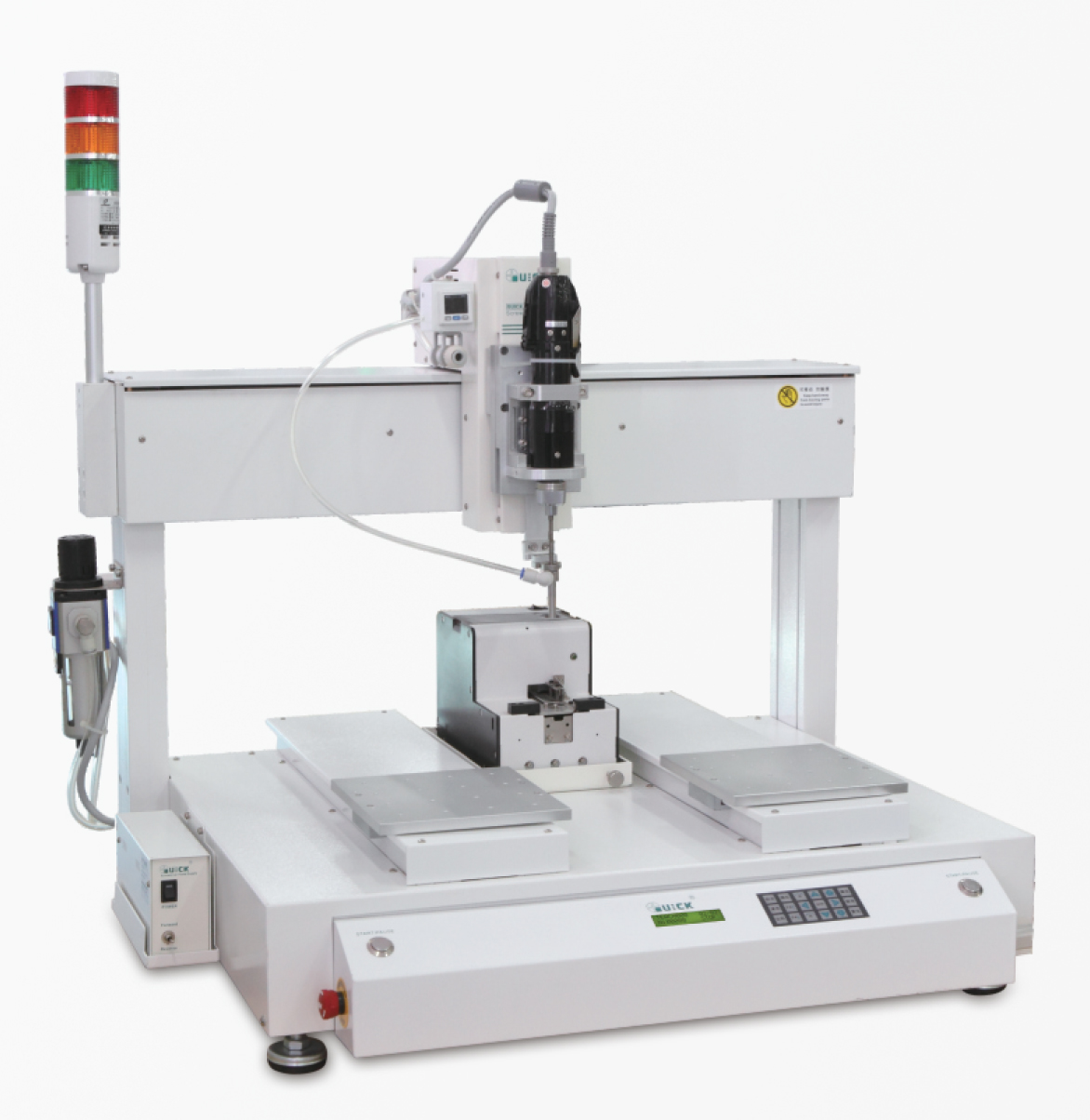

The QUICK EC513YA is a Dual-Slide Automatic Screw Driving Robot featuring a robust 3-Axis Table-Top Gantry; with industry leading stability and accuracy. Complete with Input / Output Terminals, the system is integrated with a high-precision automatic screw driving system - designed to deliver constant torque through-out the assembly process.

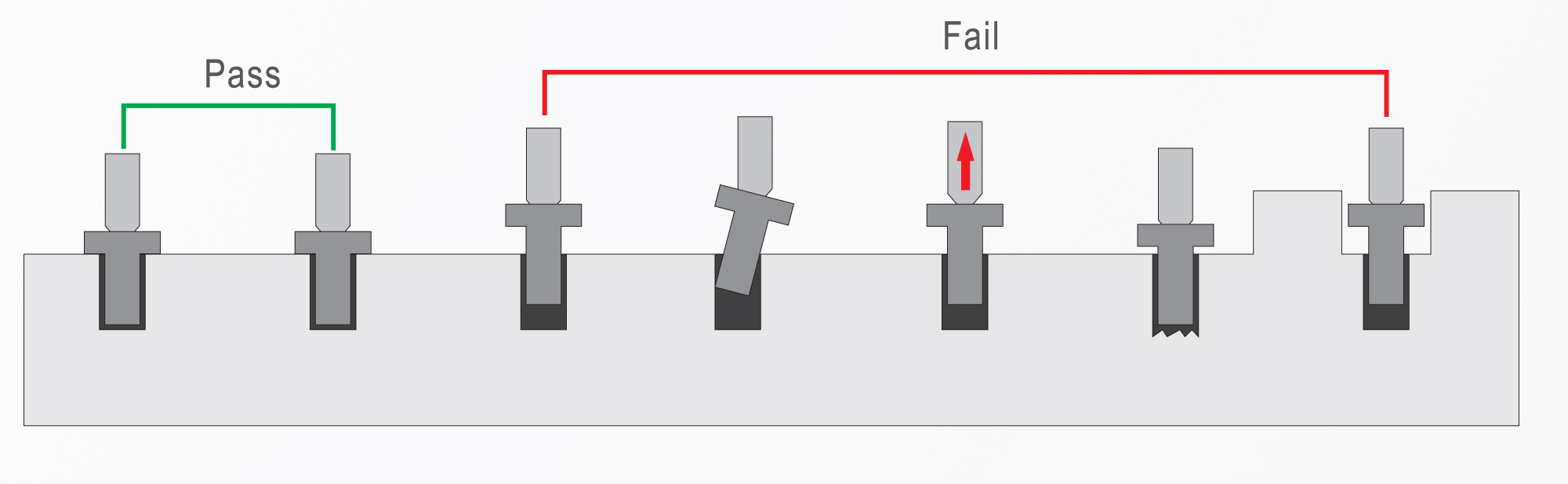

Combined with the Automatic Screw Feeding System (Air Output Type) this system can continuously feed screws, maintain an accurate screw count, and prevent screws from being lost, mishandled, or improperly installed.
system specifications:
VOLTAGE: 100~240V AC
POWER: 250W
AXIS: 4
MOVING RANGE:
X-AXIS 500mm
Y-AXIS 500mm
Z-AXIS 500mm
MOVING SPEED:
X-AXIS 0.1~600mm/sec
Y-AXIS 0.1~600mm/sec
Z-AXIS 0.1~300mm/sec
REPEATABILITY:
X-AXIS ±0.02mm
Y-AXIS ±0.02mm
Z-AXIS ±0.02mm
DIMENSIONS: 830x700x800mm
WEIGHT: 287lbs
