• Multi-Point digital temperature calibration locked by password.

  • 3 memory banks for quick setting and/or recall of soldering parameters.

  • Temperature limit alarm function.

  • °C and °F interchangeable.

  • Twin stage brush-less blower pump for stable airflow.

  • Airflow and working time can be set as parameters in addition to temperature.

  • ESD design.

  • Can be connected with other like units via PC.

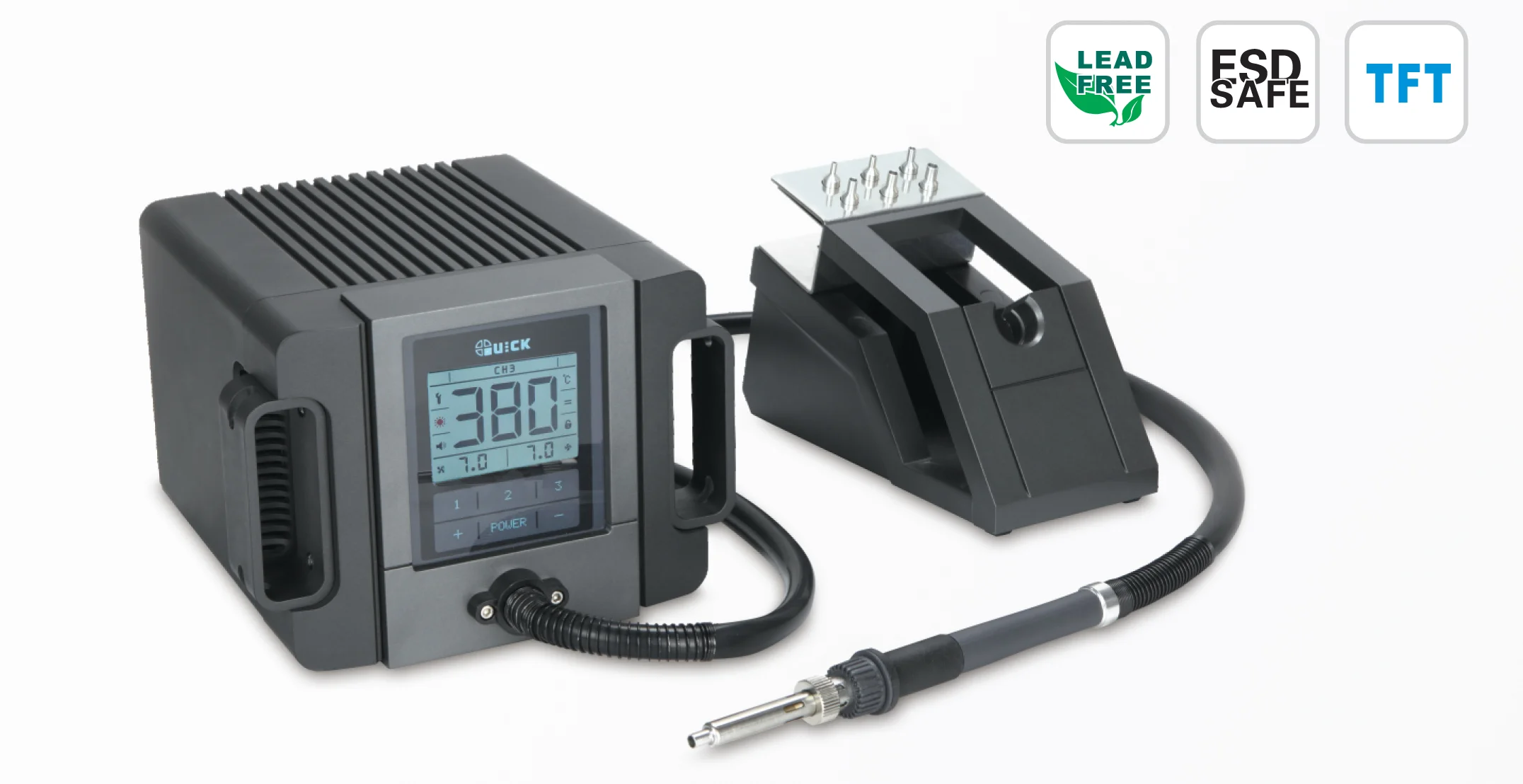

The QUICK TR1100 is an intelligent lead-free rework station.
Utilizing a robust 100 watt power supply, this system is great for high temperature solder rework applications and consistent quality.

The station features an all new ergonomic design, a brilliant LCD Display, and PC communication capability.



DISPLAY:                                                                                  Color TFT Display

POWER CONSUMPTION:                                                      180W

VOLTAGE:                                                                                 110V/220V AC Voltage

TEMPERATURE RANGE:                                                        100°C-500°C

TEMPERATURE STABILITY:                                                   +/- 2°C

AIRFLOW:                                                                                  1-100 cubic meters / hour

DIMENSIONS:                                                                           215mm x 229mm x 155mm

TR Series Online Monitoring Software Available Upon Request!
