magazine
line loading Solutions

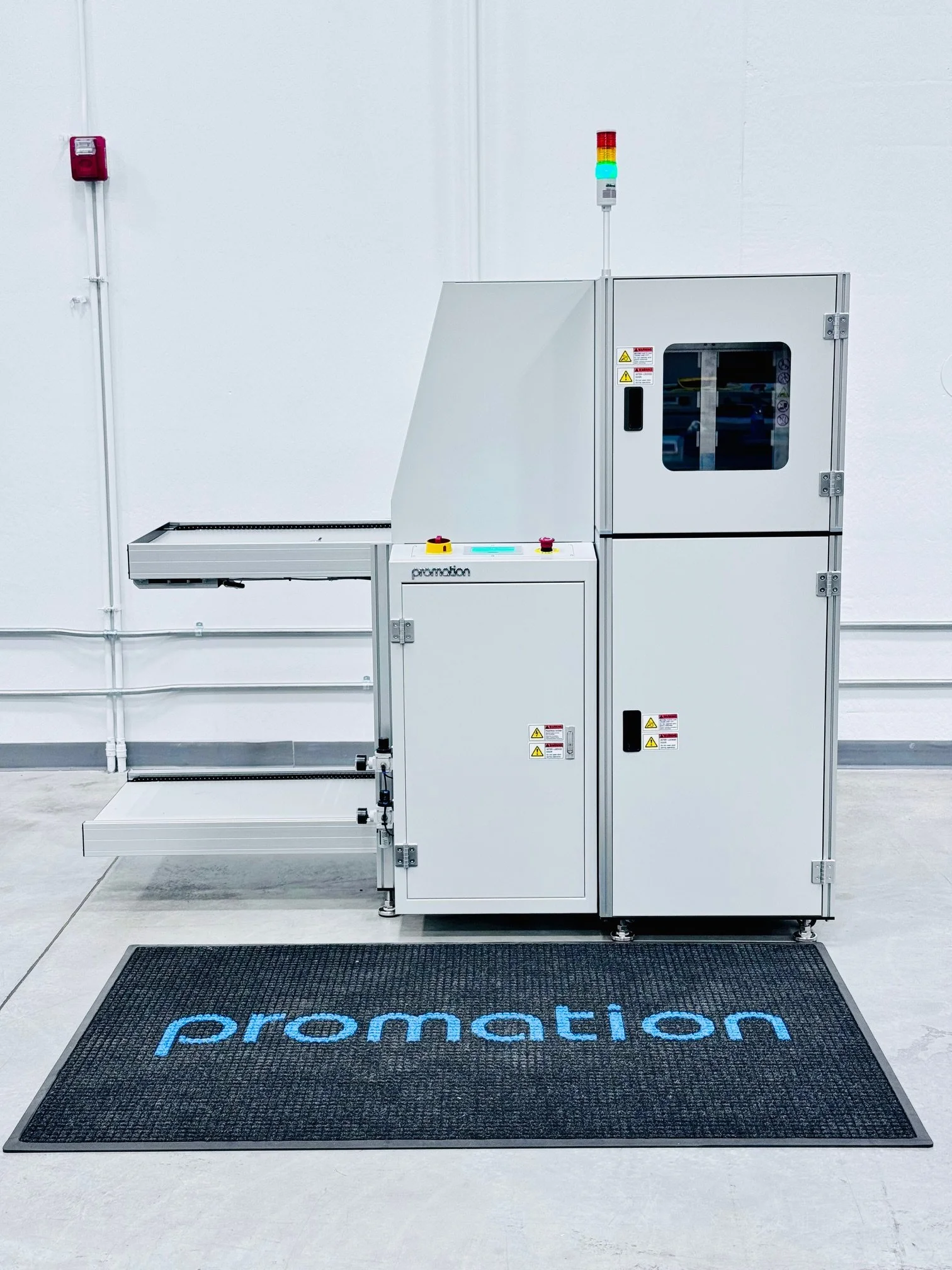

The LLD Series Magazine handler is a “Line Loading” solution that is used to populate the line with PCBs. This unit typically placed before a Screen Printer or Bare PCB line loading station, and provides an intelligent pathway between machines / processes via SMEMA interface and uses PLC timers to track PCB progress out of the magazine. The unit has automatic magazine change-over and adjustable pitch (10mm up to 50mm). Roller wheels and leveling feet allow for quick integration into the line.  Front Load and Side magazine buffer available.
Available Configurations: Single, Dual, four and five magazine in-line configurations, dual front load, dual and quad rear load



SIGNATURE Features:

  • PLC Controller (Panasonic)

  • Left to Right Process Flow, Front Fixed Rail

  • Adjustable pusher position (manual)

  • Adjustable flow control for pusher / PLC tracking

  • Single Front Load/Unload magazine system

  • E-Stop, On/Off

  • Roller wheels and leveling feet

  • Powder coated panels (PROMATION Off White)

  • 10 foot power cord (detachable)

  • One SMEMA cable

  • Pass Line Height (950mm nominal +/- 30mm)

  • Designed for 50 slot magazines (Nikko/Cab)

  • 110V Power Outlet / 15A standard circuit

  • Full safety covers (CE Type)

  • PCB Top / Bottom side clearance 40 mm

  • Touch Panel with Password Protection

  • PW for adjusting pusher timer

  • Select No of PCBs to be run from each magazine

  • Select Pitch (10 ~ 50mm) in 10mm increments

  • Full magazine notification

  • Integrated conveyor with hand crank for width adjustment. Fixed belt speed

Available Options:

  • Electric pusher type

  • 900mm nominal +/- 30mm

  • Right to Left process flow

  • 220V Power Outlet

  • Magazine sizes S, L and UX are options
