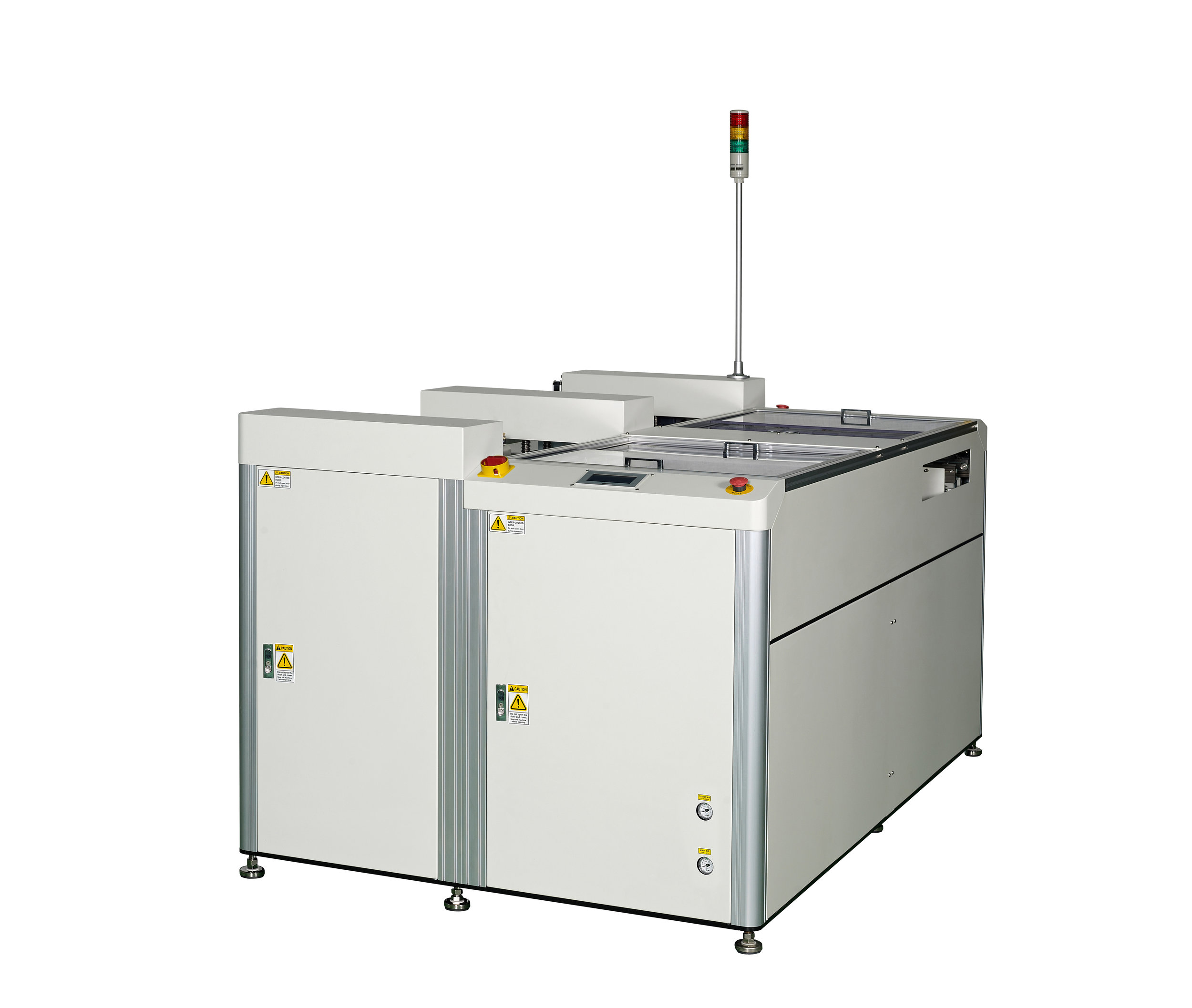

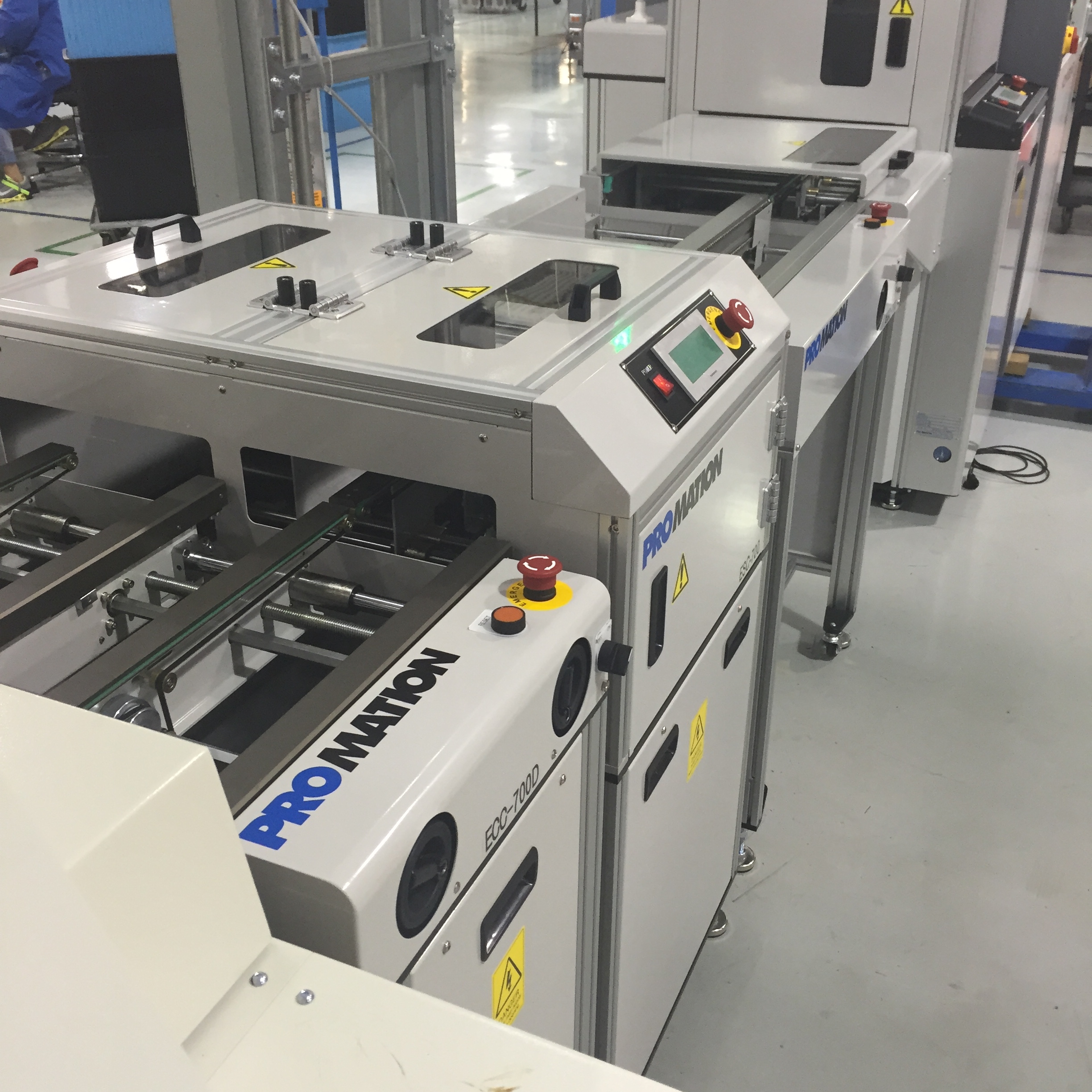

dual lane CONVEYORS

For high output production or line balancing through reflow, PROMATION offers a complete line of dual lane handling systems.

Systems Include:

- Slide Shuttles (Combiners / Separators)
- Transfer Conveyors
- Work Stations
- Magazine Handlers
- and much more.



  • Left to right process flow – front fixed rail (standard).

  • Right to left process flow – front fixed rail (optional).

  • ESD grounding receptacle (Optional) & audible alarm.

  • Roller wheels allow for easy movement.

  • Powder coated vanity panels, “PROMATION White" or "Light Gray”.

  • Conforms to SMEMA spec. 1.2 / NFPA 79

  • Includes two, three, or four standard SMEMA cables.

SIGNATURE FEATURES:

  • Programmable Logic Controller.

  • LCD touch panel interface(optional).

  • Single drive and multi-belt drive configurations available.

  • Fixed belt speed (180mm/sec) – variable speed optional

  • Dual E-Stops (Optional)and master On / Off switch.

  • Hand crank for width adjust. (automatic width adjust optional).

  • Top-side safety cover enclosures available.
