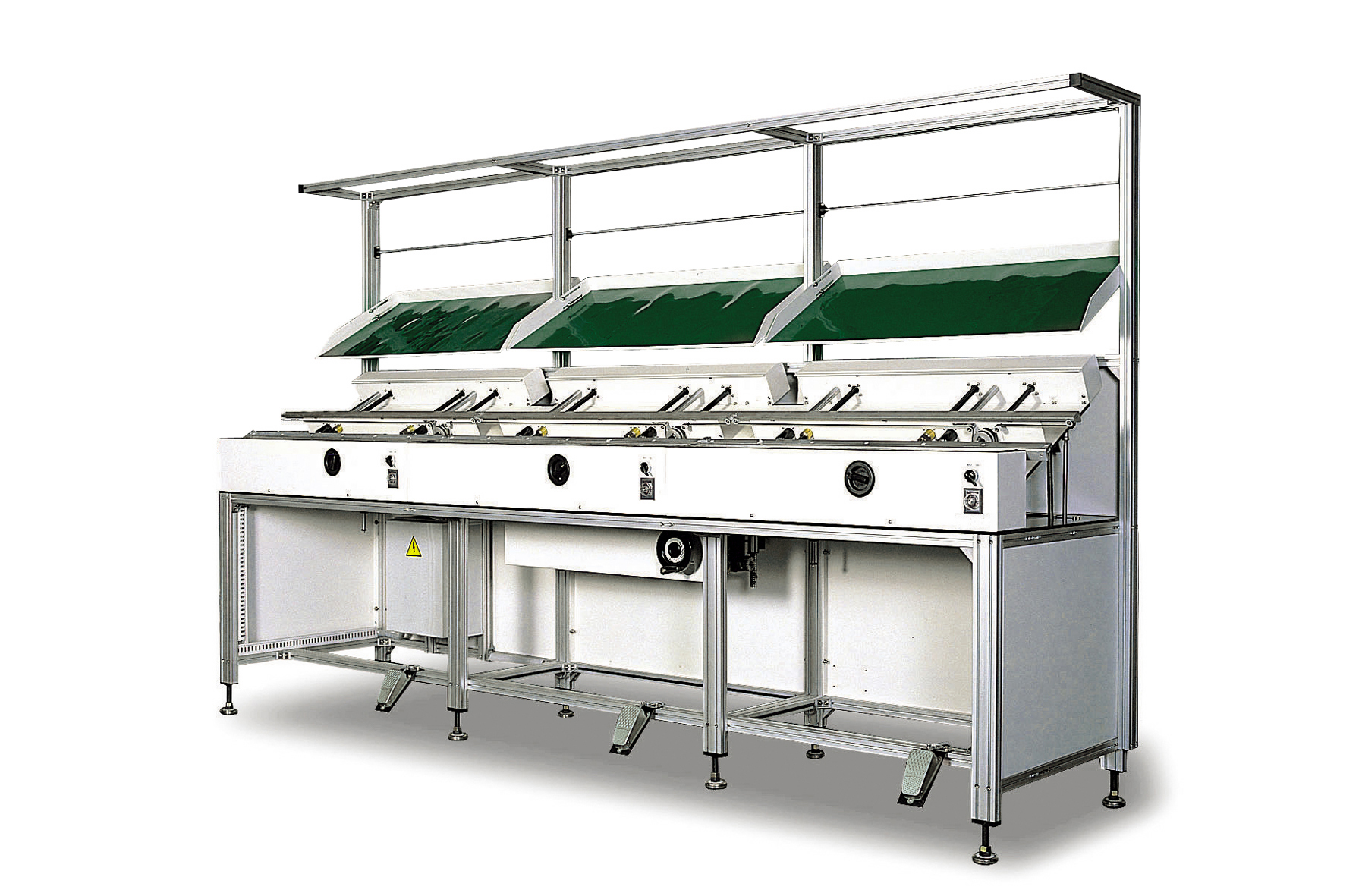

Slide Line Hand Assembly work stations



PROMATION ‘s slide line work stations are great for hand placing components, mounting odd form components, inspecting solder and/or conducting rework.  Our Signature frictionless steel roller chain allows product to glide effortlessly during the assembly/transfer process.  Available in both power and non-power transfer, these work stations can be used to directly feed a reflow oven or wave.

SIGNATURE FEATURES:

  • Programmable Logic Controller.

  • Signature 06b frictionless steel roller chain.

  • Bright overhead lighting with master On / Off switch.

  • Adjustable rear parts tray.

  • Retractable hand crank for width adjustment.

  • Improved ergonomic design with low profile front for operator comfort / reach.

  • “Left to right” process flow – front fixed rail (powered version).



  • Bi-directional flow – front fixed rail (non-powered version).

  • Operator ESD grounding ports & operator foot rests.

  • Roller wheels allowing for easy movement.

  • Powder coated vanity panels, “PROMATION White" or "Light gray”

  • Conforms to SMEMA spec. 1.2 / NFPA 79

Product Handling Capability:

Edge contact / clearance:  0.118” (3mm) 4.5mm overall            PCB Length: 3” – 20” (75mm – 508mm)

PCB Thickness: 0.5mm ~ 4.4mm                                                      PCB Width: 2” – 18” (50mm – 458mm)

Above board clearance: 1.50” (40mm)

Below board clearance: 1.50” (40mm)                                           Available Lengths:  1 operator / 1 meter

Options Include:

  • “Go PRO” LCD Touch Panel Interface with Automatic Width Adjust.

  • LCD Instructional Display Articulating Arm Mounts.

  • Variable Speed (Powered Version).

  • Additional parts storage (Articulating Arm with Bin Panel).

  • Document holders.
