POST AOI SORTING
- Multi-Functional buffer system

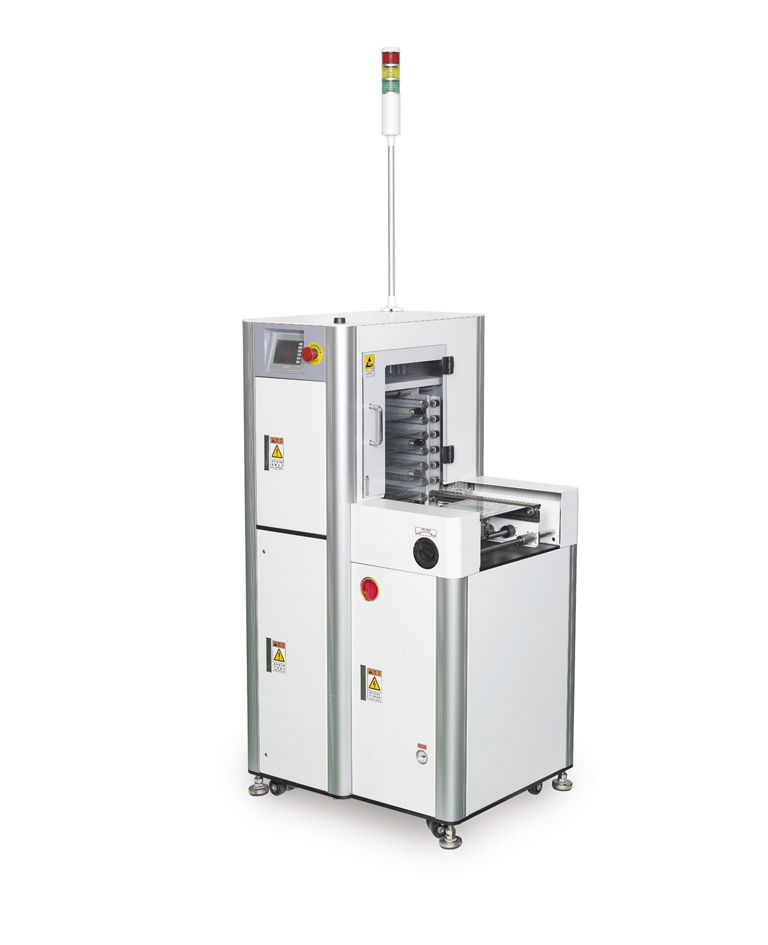

Our VBB Series of Multi-Functional buffer systems accept PASS & NG signals from the AOI System via SMEMA interface and sorts incoming PCBs accordingly. The system uses a 12 slot vertical buffer for suspect PCBs, while utilizing a lower pass-through conveyor (lower level) for GOOD PCBs. Suspect PCBs are carried to an upper conveyor level for Review/Rework and can effortlessly be reintroduced into the production line should the suspect PCB be a “false failure”. Select No of PCBs to prohibit transfer into reflow from previous conveyor. (Note: requires Long SMEMA cable option)

SIGNATURE Features:

  • PLC Controller (Panasonic)

  • Left to Right Process Flow, Front Fixed Rail

  • All belt type buffering solution – Magnetic Drive

  • 3mm edge contact

  • Precision indexing function 1 or 2 pitch select

  • In feed conveyor side

  • Automatic Width Adjustment

  • E-Stop, On/Off, Light Tower

  • Roller wheels and leveling feet

  • Powder coated panels (PROMATION Off White)

  • 10ft power cord (detachable)

  • Two SMEMA cables

  • Pass Line Height (950mm nominal +/- 30mm)

  • 72PSI Air (5 Bars)

  • 110V Power Outlet / 15A standard circuit

  • Full safety covers

  • PCB Top / Bottom side clearance depends on slot selection *

  • PCB weight limit 1kg per PCB slot

  • Touch Panel

  • LIFO / FIFO / PASS functions /



Available Options:

  • Out feed conveyor side

  • 10 slots @ 35mm spacing (pitch)

  • 15 Slots @ 22mm spacing (pitch)

  • 20 Slots @ 17mm spacing (pitch)

  • Cooling Fans on Conveyor section

  • 900 mm nominal +/- 30mm

  • Right to Left process flow

  • 220V Power Outlet



Select Number of PCBs to prohibit transfer into reflow from previous conveyor. (Note: requires Long SMEMA cable option)
