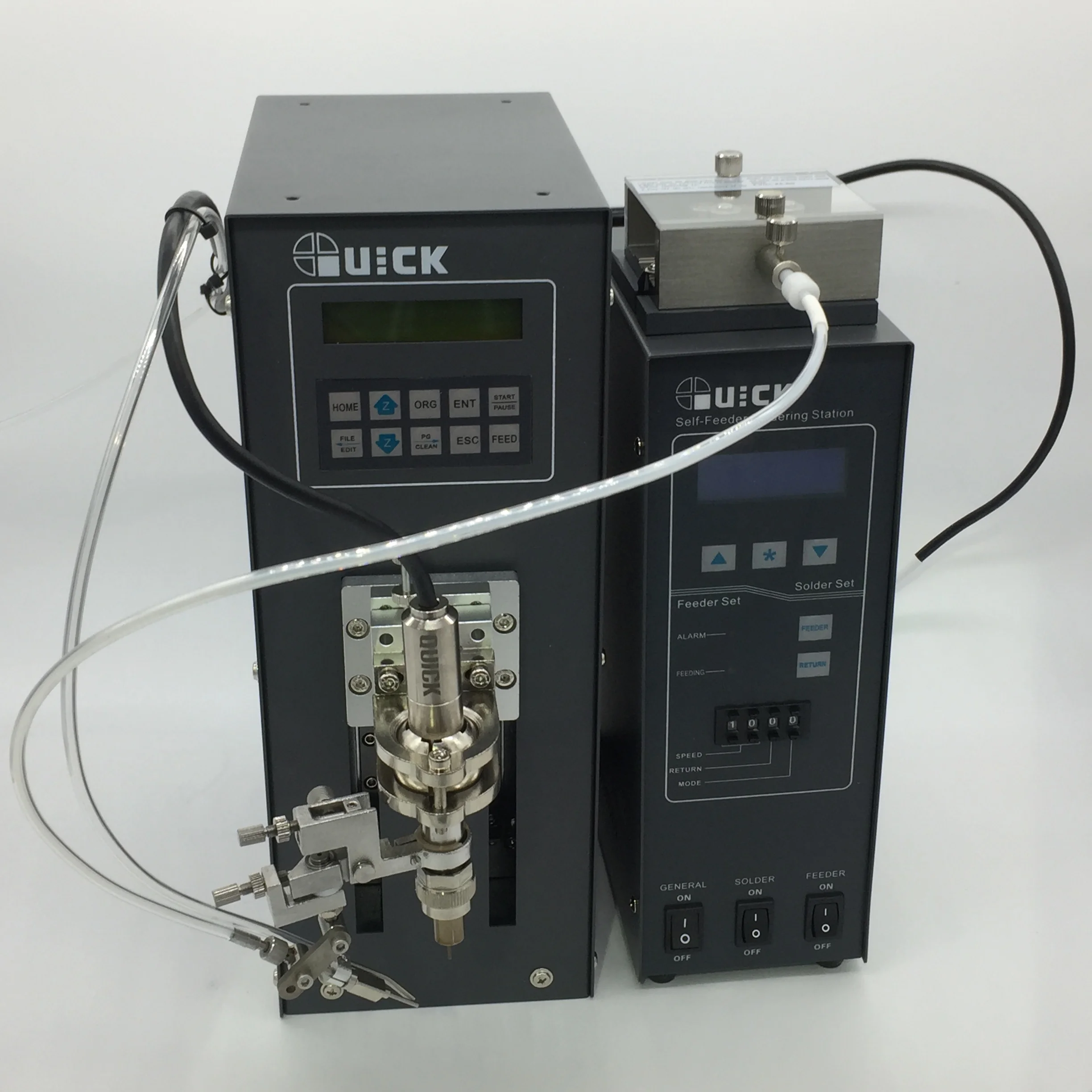

9101 SERIES Soldering Robot
(Discontinued: Please refer to 9181 Model)

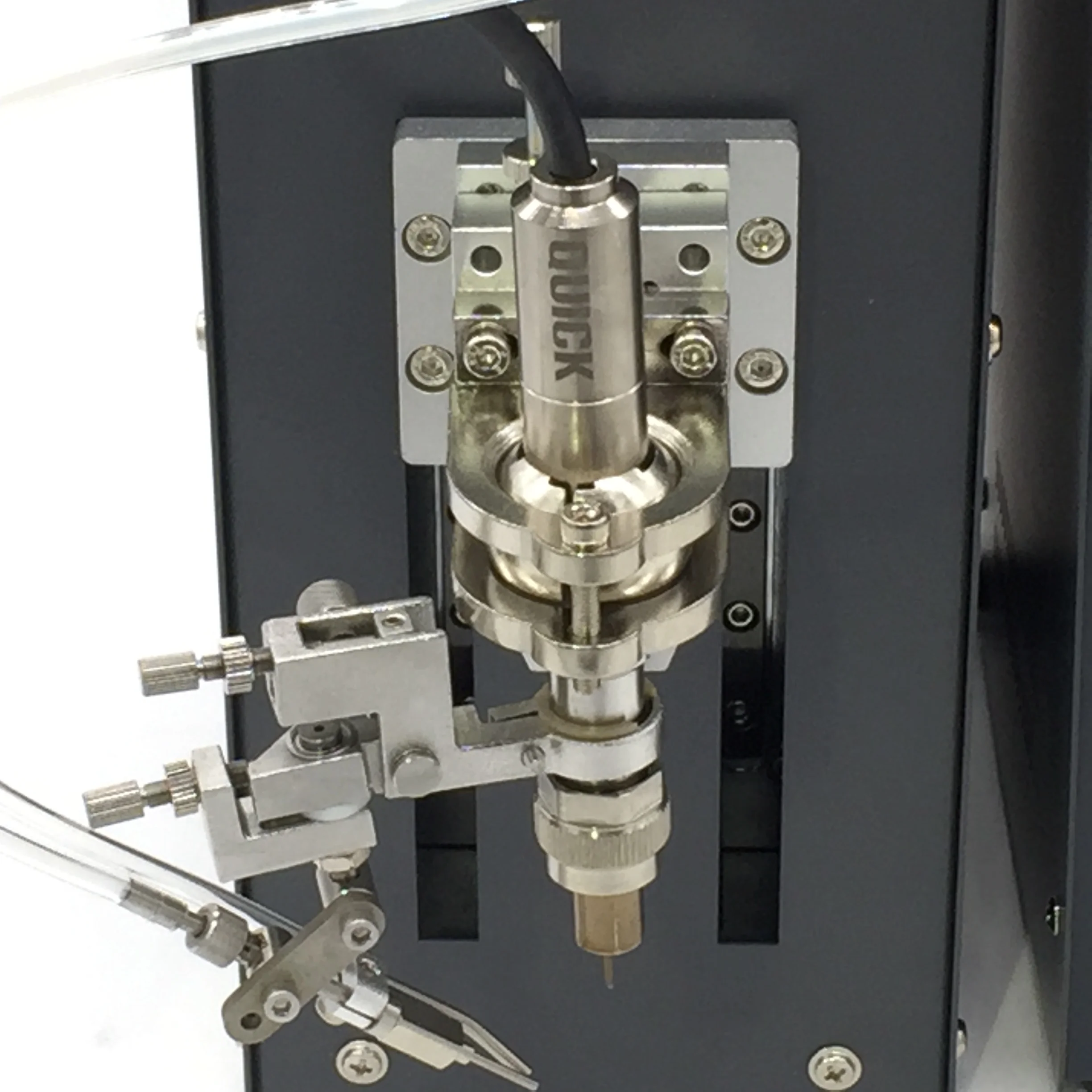

The 9101 Series of Soldering Robots features a robust Hot Iron system with a superior closed loop temperature sensor. The Hot Iron is capable of delivering and maintaining a tip temperature with industry leading stability and accuracy. Two fine-toothed gears work to pull Solder from the Solder Spool while also perforating the surface of the Solder Wire; to allow for better out gassing of the Flux Core. Better out gassing of the flux core results in less solder ball and flux splatter defects.

All systems come standard with a 150W Power Supply capable of maintaining a temperature of up to 500°C, automatic solder feeder, and positive tip location. Nitrogen output, Color CCD "Witness Cameras" and light screen safety enclosures are all available options.



System Specifications:

VOLTAGE:                                                                    110-240v

HEATING POWER:                                                     150W

TEMPERATURE RANGE:                                             0-500°C

SINGLE AXIS (Z-HEIGHT):                                         100mm

ON BOARD FILE STORAGE: 255 Programs Max

COMMAND PER PROGRAM CAPACITY: 60000 Commands Max

SOLDER WIRE DIAMETER: 0.3mm, 0.5mm, 0.6mm, 0.8mm, 1.0mm, 1.2mm, and
1.6mm (gear change may be required for various
diameters)

MOVEMENT RANGE:

Z-AXIS:                                                                         100mm

SPEED RANGE:

Z-AXIS:                                                                            0.1-200mm/s

REPEAT ACCURACY:

Z-AXIS:                                                                             ±0.02mm

STEPPER RESOLUTION:

Z-AXIS:                                                                         ±0.01mm

LOADED WEIGHT:

Z-AXIS:                                                                        4lbs

ENVIRONMENTAL CONDITIONS:

OPERATING TEMPERATURE: 0-40°C

OPERATING HUMIDITY: 20-90%
