QS-800 High Speed In-Line Dispensing Robot

Call for pricing

The QS-800 Series Dispensing Robot features a robust 3-Axis  Motion Platform with Optional (Single or Dual) In-Line Conveyor Bed(s) for progressive application processing.

This system is designed to Automate the controlled dispensing process. Once programmed to a specific application, this robot can quickly and accurately dispense materials to their desired locations.

Various types of Dispensing Needles, Syringes, Dispensing Valves, and Dispensing Controllers are available.

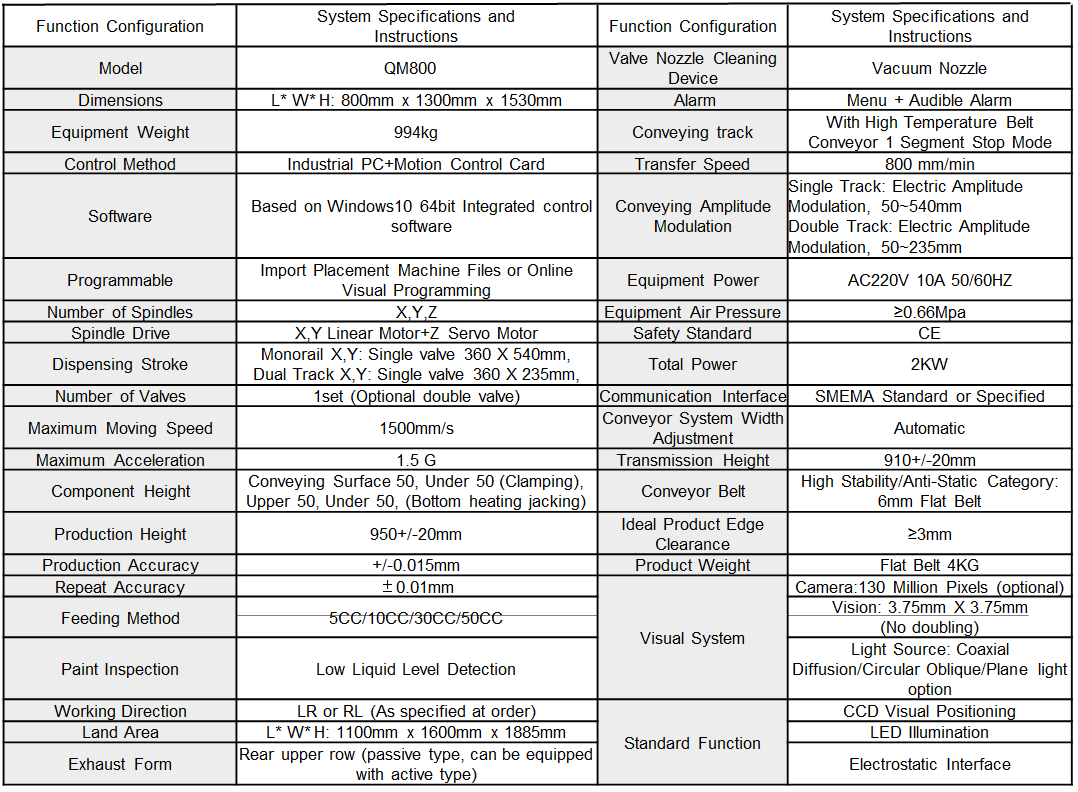

System specifications:

Gantry / Motion Control Platform:
In-Line (Single or Dual Conveyor)

Working Area (X,Y,Z):
Single Conveyor Bed: 360mm x 540mm
Dual Conveyor Bed: 360mm x 235mm

Program Storage Capacity:
256 Dispensing Programs

Teaching Method:
PC Base Programming with PCB Model Data Import

Program Storage Method:
PC and PLC

Features:

High Speed In-Line Style Gantry (Dual-Lane Conveyor Optional)

Wide variety of dispensing technology available (per material specification).

Rapid Material Heating Upgrade Available

Dynamic Vision Alignment Available

Greatly increases dispensing accuracy and consistency.
