System specifications

Z AXIS: 50mm Stroke

X AXIS: 200mm Workin

WATTAGE: 150W

BACK-UP: USB Program

TEMPERATURE RANGE: 50-500°C

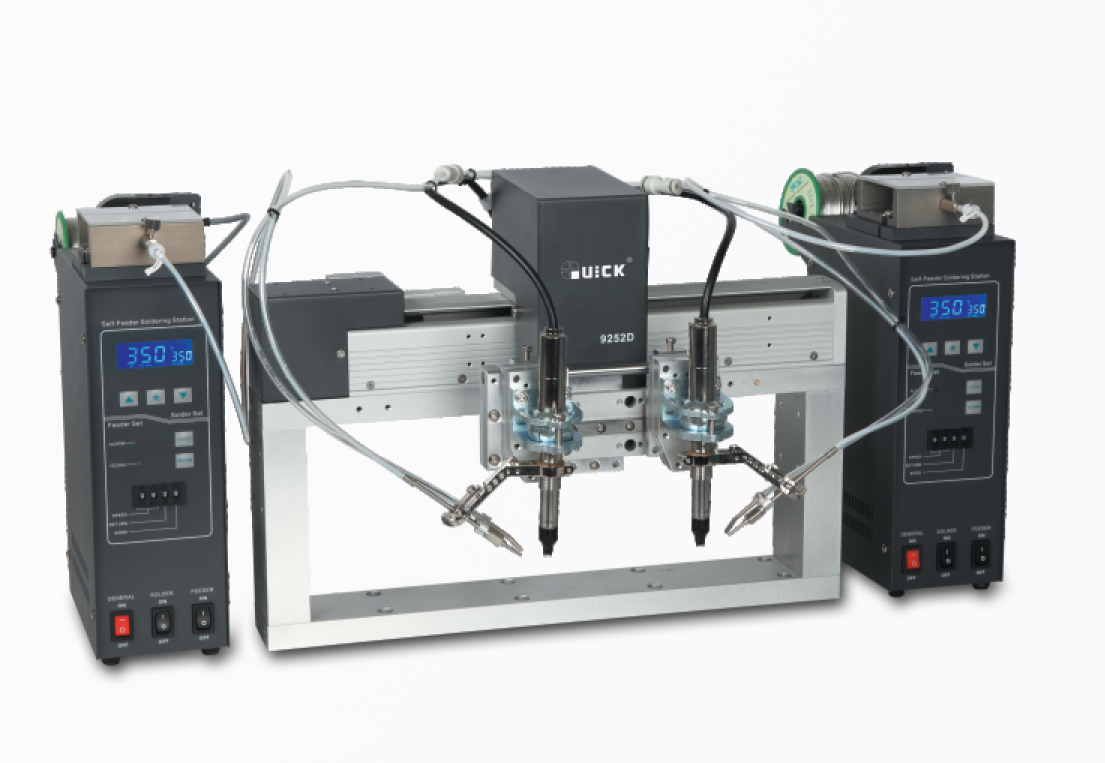

9252D SERIES Soldering Robot

Call for pricing

The QUICK 9252D series of Soldering Robots feature a robust Hot Iron system with a superior closed loop temperature sensor. The Hot Iron capable of delivering and maintaining a tip temperature with industry leading stability and accuracy. Two fine-toothed gears work to pull Solder from the Solder Spool while also perforating the surface of the Solder Wire to allow for better out gassing of the Flux Core. Better out gassing results in less solder and flux splash.

All systems come standard with a 150W Power Supply capable of maintaining a temperature of up to 500°C, automatic solder feeder, tip cleaning station, and positive tip location. Nitrogen blanket sleeves, vision guidance, Color CCD "Witness Cameras" and light screen safety enclosures are all available options.
