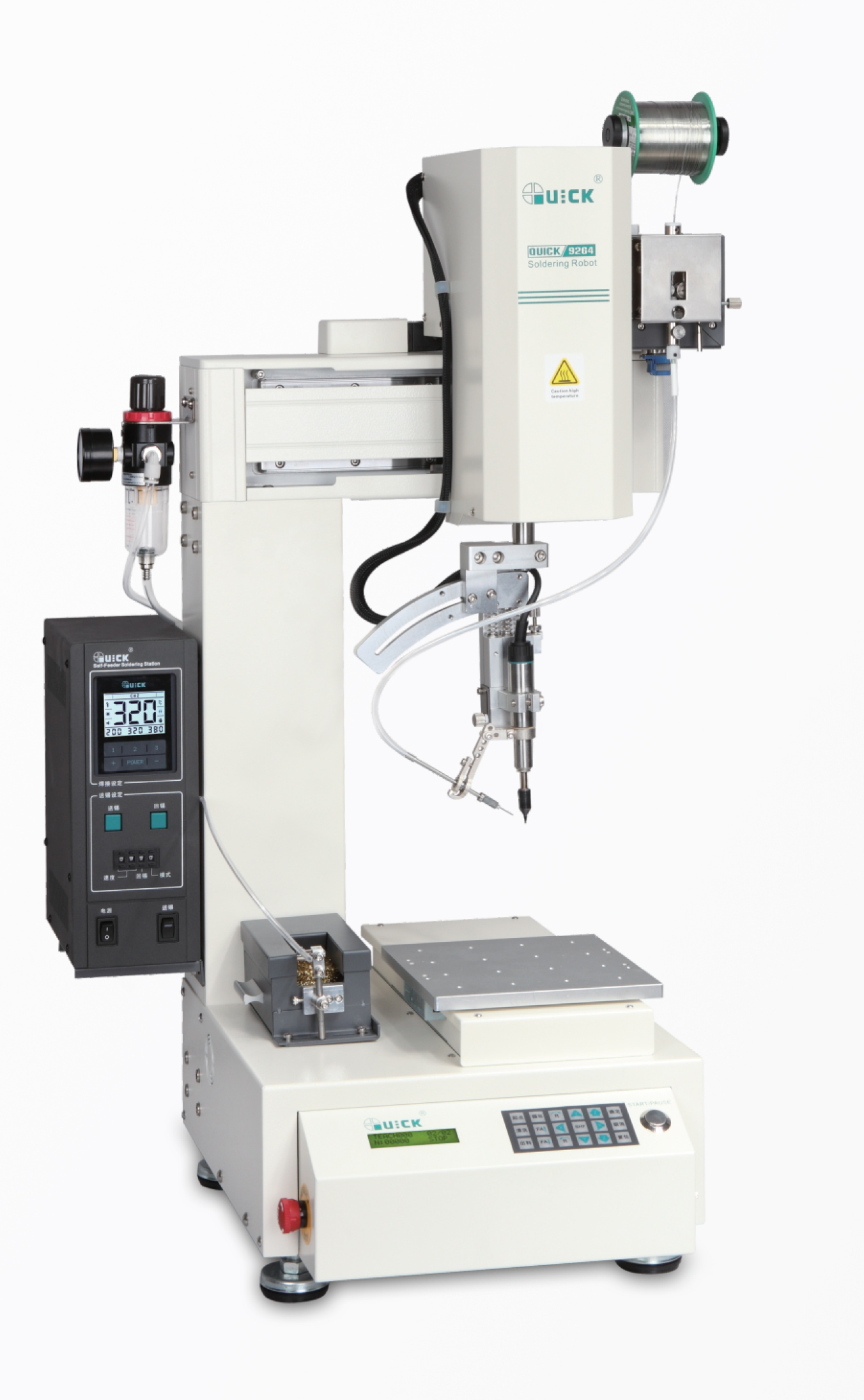

Quick 9264EC Table-Top Soldering Robot

OUr most affordable Table-Top system!

Call for pricing

The QUICK 9264EC Table-Top Soldering Robot features a robust Hot Iron system with a superior closed loop temperature sensor capable of delivering and maintaining a tip temperature with industry leading stability and accuracy. Complete with a 180W Power Supply, a V-Scoring Solder Feeder, 4-Axis Motion, Adjustable End Effector, and a Tip Cleaning Station this system is more than capable of handling most any Soldering Application. This system is ideal in environments where minimizing machine footprint is required. These systems are also our most affordable Soldering Robots due to the smaller size of their frame.

System Specifications:

VOLTAGE:                                                                                          100-240V AC

HEATING POWER:                                                                           180W

TEMPERATURE RANGE:                                                                 50°C-500°C (as per working modes)

AXIS:                                                                                                    4

SOLDER WIRE DIAMETER:                                                              0.3, 0.5, 0.6, 0.8, 1.0, 1.2, 1.6(mm)

DIMENSIONS WxDxH:                                                                     500x580x780mm

WEIGHT:                                                                                            around 128lbs
